base H is a suspended, linear profile which can be individually configured with various LED lighting inserts. Different light characteristics can be combined in a choice of three length units. The system boasts a slim design, sophisticated lighting technology and freely definable suspension points which offer unlimited possibilities for adapting the lighting to the architecture or the shop fitting.
base H system design
1. Profile (black or white) with direct or direct/indirect lighting
2. Ready-to-connect lighting insert, modular configuration
3. Diffusers optionally satined or with microprismatic surface
4. LED driver (Fix Current, DALI or tuneable white)
5. LED strips for indirect lighting
6. Opal cover, satined
7. Y-cable suspension, sliding and height adjustable
Simple – unlimited modularity
Linear LED lighting insert
- 3 length units (847 mm, 1,162 mm, 1,477 mm)
- 2,700 K, 3,000 K, 4,000 K
- Fix Current, DALI low/high
- Tuneable white low/high
- Light characteristic can be shaped by the choice of the diffuser:
Diamond prisma with foil, UGR <19
Diamond prisma, UGR <19
Satined
Drop Line 35° LED lighting insert
- Lighting insert with free-form faceted reflectors
- 2 length units (1,162 mm, 1,477 mm)
- 2,700 K, 3,000 K, 4,000 K
- Fix Current, DALI low/high
- Tuneable white low/high
- UGR < 19
Clever – a perfect fit

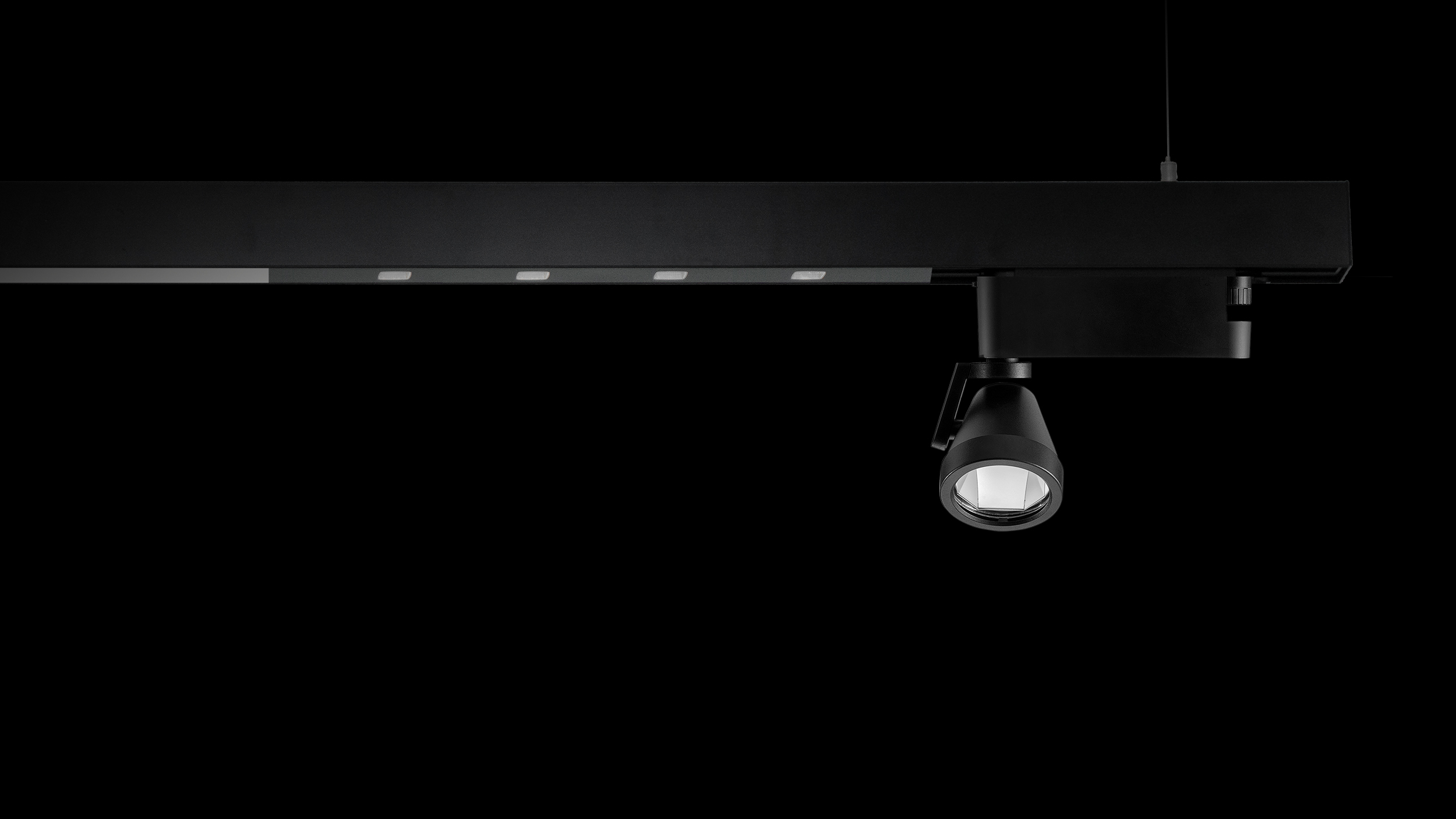

As well as the different lighting inserts, base H can also be combined with a 3phase track. This enables the lighting effects that can be achieved to be expanded to include spotlights for accent lighting. The track element can be planned for both conventional light control and for connection to a DALI light control system.
Smart – the body clock always ticks
Lighting inserts for base H are available in 2,700 K and 3,000 K for a warm light, 4,000 K for a cooler colour temperature or in tuneable white. The tuneable white version enables the light colour to be infinitely regulated from 2,700 K to 5,700 K with a DALI interface. The colour rendering index (CRI) is always > 85.
