The Intara RD 190 family of recessed luminaires combines a clear design language with a modular design structure and maximum variability.

  • segmented reflectors with a micro-structured Miro-silver® surface specially developed by BÄRO
  • extremely efficient light channelling and maximum efficiency
  • dimmable via DALI
  • 4 standard and 8 colour-itensifiying light colours

With numerous light colours, light outputs and light distribution patterns this luminaire family is the ideal solution for all kinds of different lighting tasks.

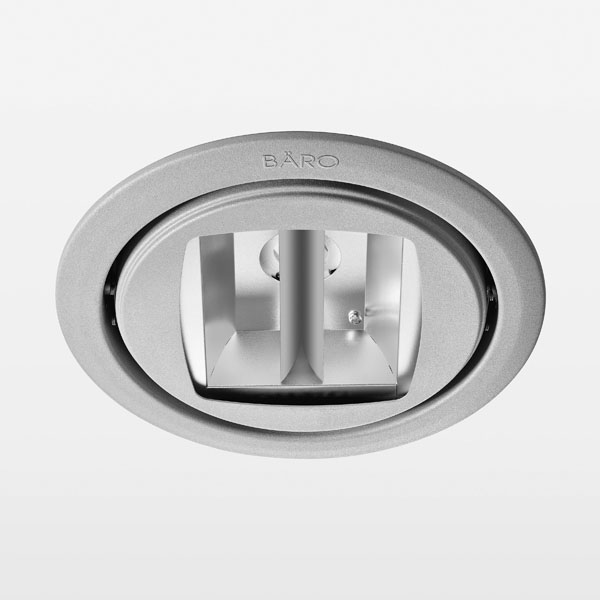

Intara RD 190

Art.-Nr. 51300019

Light technology

LED COB
Light colour 840
Luminous flux 9530 lm
System power 78 W
Luminaire Efficiency 122 lm/W
Reflector BatWing
Beam angle 2 x 35°

Luminaire

Rotation angle 170°
Swivel angle 2 x 30°
Weight 1.2 kg
Protection rating . class IP 20 . III
Luminaire colour stratosilver

Optional

RAL colours
Mounting Accessories
DALI Driver Unit
Intara RD 190 Intara RD 190

Recessed luminaire with LED, rated life of the LED L80/B10 > 50000 h, colour rendering index CRI > 80, chromaticity tolerance 3 SDCM (initial), reflector with double asymmetrical light distribution pattern, reflector pure aluminium 99,99% in MIRO-Silver®, rotation angle 170°, swivel angle +30°/-30°, luminaire housing sheet steel, powder-coated, stratosilver

Multiadapter black, inclusive driver unit: 220-240 V~ / 50-60 Hz,
max. 40 luminaires per circuit (B16A fuse)

Note: All data are typical values. System features may change with product improvements due to technical advances. Errors excepted.
