Discreetly present.

The ceiling plaster variant of the Intara CX is ideal for creating a calm, clear ceiling image.

  • Wattages: 15 W, 23 W, 34 W
  • Light colours: 927, 830, 835, 840, PearlWhite, Sun, BeCool, BeColor, GoldenBread, Meat&Fish, SpecialMeat, FreshMeat
  • Directional spot: NarrowSpot 10°, Spot 20°, Medium 25°, Flood 44°, OvalBasic 40° x 60°,
  • Downlight 60°
  • Wallwasher
  • Luminous flux: up to 3,690 lm
  • Luminous efficacy: up to 137 lm/W
  • Control: Fix Current, DALI: 100 % – 1 %, Casambi
  • Ceiling cut-out: 132 mm
  • Suitable for ceiling thicknesses of 12.5 to 25 mm

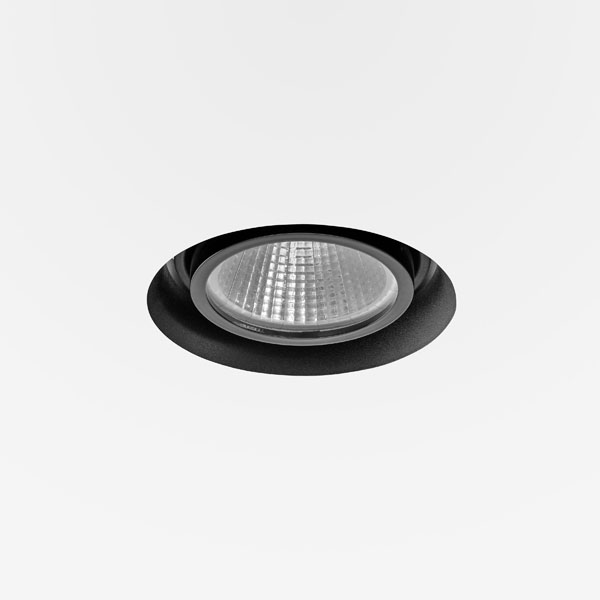

Intara CX

Art.-nr. 51460010

Light technology

LED COB
Light colour PearlWhite
Luminous flux 3660 lm
System power 41 W
Luminaire Efficiency 89 lm/W
Reflector Flood
Beam angle 40°

Luminaire

Rotation angle 350°
Swivel angle +30° / -30°
Weight 0.70 kg
Protection rating . class IP20 . III
Luminaire colour black

Optioneel

RAL-colours, NCS-colours (powder coating or wet spraying) on inquiry, surface alloys on inquiry, honeycomb louver
Intara CX Intara CX

Recessed directional spot, flush with ceiling with LED, rated life of the LED L80/B10 > 50000 h, colour rendering index CRI > 90, chromaticity tolerance 2 SDCM (initial), reflector with circular light distribution pattern, reflector pure aluminium 99,99% in MIRO-Silver®, segmented and faceted, exchangeable reflector unit in high-sheen black plastic, with glass cover, luminaire head designed as heat sink die-cast aluminium, black anodized, rotation angle 350°, swivel angle +30°/-30°, Ceiling plaster die-cast aluminum, trim plastic injection molding, black, separate driver unit

76500037 driver unit, Fix Current,
220-240 V / 50-60 Hz, 1050 mA, camera-compatible, up to 2.5 KV interference resistance, SELV, max. 22 luminaires per circuit (B16A fuse)

76500042 driver unit, DALI,
220-240 V / 50-60 Hz, 1050 mA, with GST18/5-pin connector, incl. 5-conductor feed-through wiring, camera-compatible, up to 2.5 KV interference resistance, SELV, max. 22 luminaires per circuit (B16A fuse)

Note: All data are typical values. System features may change with product improvements due to technical advances. Errors excepted.
