Discreetly present.

The ceiling plaster variant of the Intara CX is ideal for creating a calm, clear ceiling image.

  • Wattages: 15 W, 23 W, 34 W
  • Light colours: 927, 830, 835, 840, PearlWhite, Sun, BeCool, BeColor, GoldenBread, Meat&Fish, SpecialMeat, FreshMeat
  • Directional spot: NarrowSpot 10°, Spot 20°, Medium 25°, Flood 44°, OvalBasic 40° x 60°,
  • Downlight 60°
  • Wallwasher
  • Luminous flux: up to 3,690 lm
  • Luminous efficacy: up to 137 lm/W
  • Control: Fix Current, DALI: 100 % – 1 %, Casambi
  • Ceiling cut-out: 132 mm
  • Suitable for ceiling thicknesses of 12.5 to 25 mm

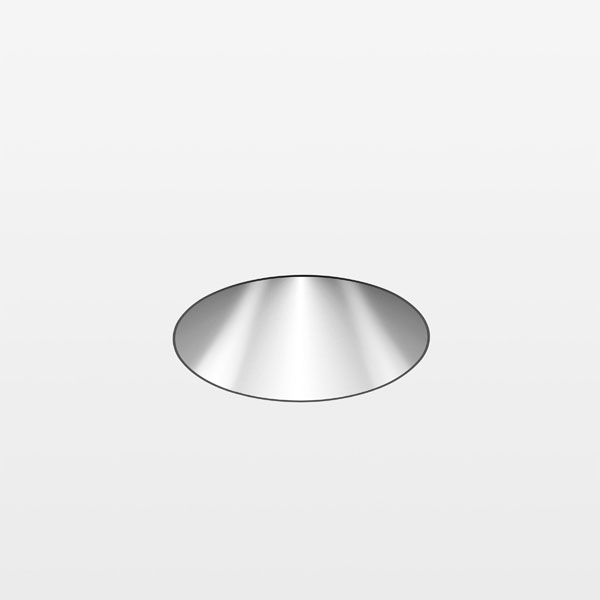

Intara CX

Art.-nr. 51490004

Light technology

LED COB
Light colour 927
Luminous flux 1290 lm
System power 15 W
Luminaire Efficiency 83 lm/W
Reflector Downlight
Beam angle 60°

Luminaire

Weight 0.65 kg
Protection rating . class IP 20 . III
Luminaire colour black

Optioneel

RAL-colours, NCS-colours (powder coating or wet spraying) on inquiry, surface alloys on inquiry, honeycomb louver
Intara CX Intara CX

Recessed downlight, flush with ceiling with LED, rated life of the LED L80/B10 > 50000 h, colour rendering index CRI > 90, chromaticity tolerance 2 SDCM (initial), reflector with homogeneous light distribution pattern, diffuser lens, translucent, darklight reflector, aluminium, metallised, highgloss, luminaire head die-cast aluminium, black anodized
black anodized, Ceiling plaster die-cast aluminum, trim plastic injection molding, black, separate driver unit

76500050 driver unit, Fix Current,
220-240 V / 50-60 Hz, 400 mA, camera-compatible, up to 2.5 KV interference resistance, SELV, max. 34 luminaires per circuit (B16A fuse)

76500051 driver unit, DALI,
220-240 V / 50-60 Hz, 400 mA, with GST18/5-pin connector, incl. 5-conductor feed-through wiring, camera-compatible, up to 2.5 KV interference resistance, SELV, max. 24 luminaires per circuit (B16A fuse)

Note: All data are typical values. System features may change with product improvements due to technical advances. Errors excepted.
