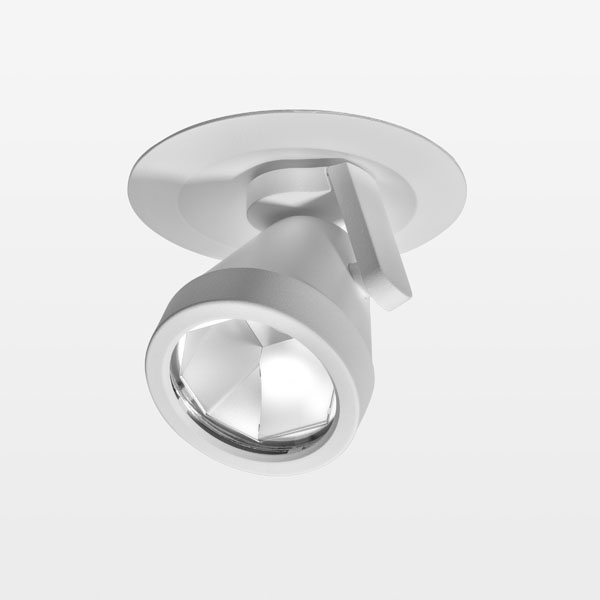

The concave shape of the ceiling mounting piece made of die-cast aluminium contributes to the low-key look of the Intara XR semi-recessed luminaire.
The Intara XR can be easily mounted without tools.
Thanks to the shallow fitting depth, there are hardly any limits to the possible applications.
A potentiometer on the ceiling fitting enables simple dimming of the luminaire.
Modular driver concept for individual requirements and faster installation.
Art.-nr. 50780018
| LED | COB |
| Light colour | 927 |
| Luminous flux | 3430 lm |
| System power | 41 W |
| Luminaire Efficiency | 84 lm/W |
| Reflector | OvalBasic |
| Beam angle | 60° x 40° |
| Rotation angle | 400° |
| Swivel angle | +85°/-85° |
| Weight | 0.65 kg |
| Protection rating . class | IP 20 . II |
| Luminaire colour | stratowhite |
| RAL-colours, NCS-colours (powder coating or wet spraying) on inquiry, surface alloys on inquiry, honeycomb louver |
Semi-recessed luminaire with LED, rated life of the LED L80/B10 > 50000 h, colour rendering index CRI > 90, chromaticity tolerance 2 SDCM (initial), reflector with oval light distribution pattern, reflector pure aluminium 99,99% in MIRO-Silver®, segmented, die-cast aluminium, powder-coated, rotation angle 400°, swivel angle +85°/-85°, stratowhite, potentiometer to adjust the brightness, separate driver unit
76500109 driver unit, Fix Current,
220-240 V / 50-60 Hz, 1050 mA, camera-compatible, up to 2.5 KV interference resistance, SELV, max. 22 luminaires per circuit (B16A fuse)
Note: All data are typical values. System features may change with product improvements due to technical advances. Errors excepted.
