Discreetly present.

    The ceiling plaster variant of the Intara CX is ideal for creating a calm, clear ceiling image.

    • Wattages: 15 W, 23 W, 34 W
    • Light colours: 927, 830, 835, 840, PearlWhite, Sun, BeCool, BeColor, GoldenBread, Meat&Fish, SpecialMeat, FreshMeat
    • Directional spot: NarrowSpot 10°, Spot 20°, Medium 25°, Flood 44°, OvalBasic 40° x 60°,
    • Downlight 60°
    • Wallwasher
    • Luminous flux: up to 3,690 lm
    • Luminous efficacy: up to 137 lm/W
    • Control: Fix Current, DALI: 100 % – 1 %, Casambi
    • Ceiling cut-out: 132 mm
    • Suitable for ceiling thicknesses of 12.5 to 25 mm

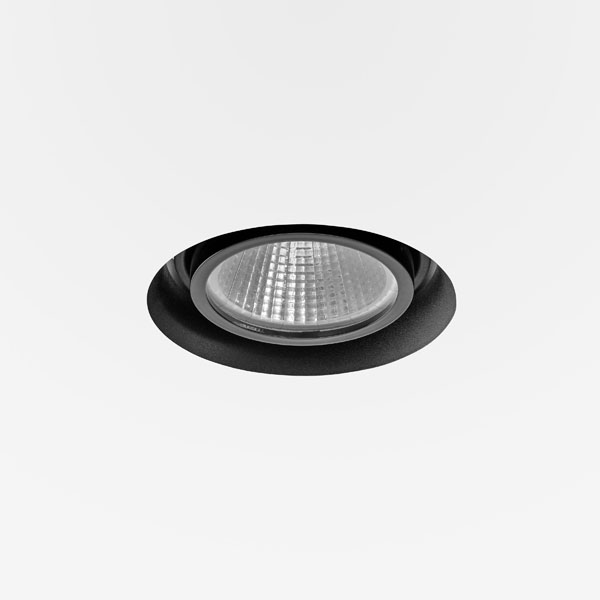

    Intara CX

    Nr art. 51450006

    Light technology

    LED COB
    Light colour BeCool
    Luminous flux 1780 lm
    System power 23 W
    Luminaire Efficiency 77 lm/W
    Reflector Medium
    Beam angle 25°

    Luminaire

    Rotation angle 350°
    Swivel angle +30° / -30°
    Weight 0.70 kg
    Protection rating . class IP20 . III
    Luminaire colour black

    Opcja

    RAL-colours, NCS-colours (powder coating or wet spraying) on inquiry, surface alloys on inquiry, honeycomb louver
    Intara CX Intara CX

    Recessed directional spot, flush with ceiling with LED, rated life of the LED L80/B10 > 50000 h, colour rendering index CRI > 96, chromaticity tolerance 3 SDCM (initial), LED hybrid technology, 3D silicone lens to reduce the proportion of scattered light, reflector with circular light distribution pattern, reflector pure aluminium 99,99% in MIRO-Silver®, segmented and faceted, exchangeable reflector unit in high-sheen black plastic, with glass cover, luminaire head designed as heat sink die-cast aluminium, black anodized, rotation angle 350°, swivel angle +30°/-30°, Ceiling plaster die-cast aluminum, trim plastic injection molding, black, separate driver unit

    76500034 driver unit, Fix Current,
    220-240 V / 50-60 Hz, 600 mA, camera-compatible, up to 2.5 KV interference resistance, SELV, max. 34 luminaires per circuit (B16A fuse)

    76500039 driver unit, DALI,
    220-240 V / 50-60 Hz, 600 mA, with GST18/5-pin connector, incl. 5-conductor feed-through wiring, camera-compatible, up to 2.5 KV interference resistance, SELV, max. 24 luminaires per circuit (B16A fuse)

    Note: All data are typical values. System features may change with product improvements due to technical advances. Errors excepted.
